AD-Insert® 卡式螺母
|

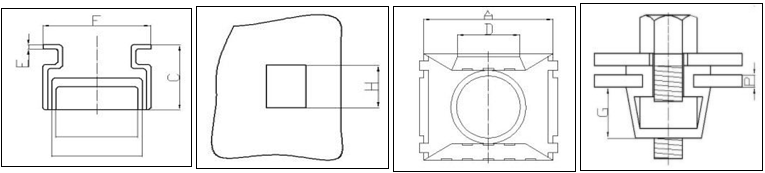

產品編碼 |
螺母型號 |
適合厚板p |
A |
C |
D |
E |
F |
G |
H |
|
AD-AM3-... |
M3 |
A:1-1.6 |
12 |
8.5 |
7.2 |
0.45 |
12.1 |
6.2 |
8.3*8.3 |
|
AD-BM3-... |
M3 |
B:1.7-2.5 |
12 |
9.5 |
7.2 |
0.45 |
12.1 |
6.2 |
8.3*8.3 |
|
AD-CM3-... |
M3 |
C:1-1.6 |
13 |
8.8 |
8.5 |
0.45 |
13.2 |
6.2 |
9.5*9.5 |
|
AD-DM3-... |
M3 |
D:1.7-2.5 |
13 |
10 |
8.5 |
0.45 |
13.2 |
6.2 |
9.5*9.5 |
|
AD-AM4-... |
M4 |
A:1-1.6 |
9.5 |
6.6 |
4.8 |
0.35 |
9.7 |
3.5 |
5.5*3.5 |
|
AD-BM4-... |
M4 |
B:1.7-2.3 |
9.5 |
7.4 |
4.8 |
0.35 |
9.7 |
3.5 |
5.5*3.5 |
|
AD-CM4-... |
M4 |
C:2.4-3.2 |
9.5 |
8.3 |
4.8 |
0.35 |
9.7 |
3.5 |
5.5*3.5 |
|
AD-DM4-... |
M4 |
D:1-1.6 |
12 |
8.5 |
7.2 |
0.45 |
12.1 |
6.2 |
8.3*8.3 |
|
AD-EM4-... |
M4 |
E:7-2.5 |
12 |
9.5 |
7.2 |
0.45 |
12.1 |
6.2 |
8.3*8.3 |
|
AD-FM4-... |
M4 |
F;2.6-3.5 |
12 |
10.5 |
7.2 |
0.45 |
12.1 |
6.2 |
8.3*8.3 |
|
AD-GM4-... |
M4 |
G:3.6-4.5 |
12 |
11.5 |
7.2 |
0.45 |
12.1 |
6.2 |
8.3*8.3 |
|
AD-HM4-... |
M4 |
H:0.7-1.6 |
13 |
8.8 |
8.5 |
0.45 |
13.2 |
6.5 |
9.5*9.5 |
|
AD-IM4-... |
M4 |
I:1.7-2.7 |
13 |
10 |
8.5 |
0.45 |
13.2 |
6.5 |
9.5*9.5 |
|
AD-JM4-... |
M4 |
J:2.8-3.6 |
13 |
11.2 |
8.5 |
0.45 |
13.2 |
6.5 |
9.5*9.5 |
|
AD-AM5-... |
M5 |
A:0.7-1.6 |
13 |
8.8 |
8.5 |
0.45 |
13.2 |
6.5 |
9.5*9.5 |
|
AD-BM5-... |
M5 |
B:1.7-2.7 |
13 |
10 |
8.5 |
0.45 |
13.2 |
6.5 |
9.5*9.5 |
|
AD-CM5-... |
M5 |
C:2.8-3.6 |
13 |
11.2 |
8.5 |
0.45 |
13.2 |
6.5 |
9.5*9.5 |
|
AD-DM5-... |
M5 |
D:1-1.6 |
12 |
8.5 |
7.2 |
0.45 |
12.1 |
6.2 |
8.2*8.3 |
|
AD-EM5-... |
M5 |
E:1.7-2.5 |
12 |
9.5 |
7.2 |
0.45 |
12.1 |
6.2 |
8.5*8.5 |
|
AD-FM5-... |
M5 |
F:2.6-3.5 |
12 |
10.5 |
7.2 |
0.45 |
12.1 |
6.2 |
8.5*8.5 |
|
AD-GM5-... |
M5 |
G:3.6-4.5 |
12 |
11.5 |
7.2 |
0.45 |
12.1 |
6.2 |
8.5*8.5 |
|
AD-AM6-... |
M6 |
A:1-1.6 |
12 |
8.5 |
7.2 |
0.45 |
12.1 |
6.2 |
8.5*8.5 |
|
AD-BM6-... |
M6 |
B:1.7-2.5 |
12 |
9.5 |
7.2 |
0.45 |
12.1 |
6.2 |
8.5*8.5 |
|
AD-CM6-... |
M6 |
C:2.6-3.5 |
12 |
10.5 |
7.2 |
0.45 |
12.1 |
6.2 |
8.5*8.5 |
|
AD-DM6-... |
M6 |
D:3.6-4.5 |
12 |
11.5 |
7.2 |
0.45 |
12.1 |
6.2 |
8.5*8.5 |
|
AD-EM6-... |
M6 |
E:0.7-1.6 |
13 |
8.8 |
8.5 |
0.45 |
13.2 |
6.5 |
9.5*9.5 |
|
AD-FM6-... |
M6 |
F:1.7-2.7 |
13 |
10 |
8.5 |
0.45 |
13.2 |
6.5 |
9.5*9.5 |
|
AD-GM6-... |
M6 |
G:2.8-3.6 |
13 |
11.2 |
8.5 |
0.45 |
13.2 |
6.5 |
9.5*9.5 |
|
AD-HM6-... |
M6 |
H:1-1.7 |
16 |
10.4 |
10.6 |
0.5 |
16.6 |
7.8 |
12.3*12.3 |
|
AD-IM6-... |
M6 |
I:1.8-3.2 |
16 |
11.9 |
10.6 |
0.5 |
16.6 |
7.8 |
12.3*12.3 |
|
AD-JM6-... |
M6 |
J;3.3-4.7 |
16 |
13.4 |
10.6 |
0.5 |
16.6 |
7.8 |
12.3*12.3 |
|
AD-AM8-... |
M8 |
A:1-1.7 |
16 |
10.4 |
10.6 |
0.5 |
16.6 |
7.8 |
12.3*12.3 |
|
AD-BM8-... |
M8 |
B:1.8-3.2 |
16 |
11.9 |
10.6 |
0.5 |
16.6 |
7.8 |
12.3*12.3 |
|
AD-CM8-... |
M8 |
C:3.3-4.7 |
16 |
13.4 |
10.6 |
0.5 |
16.6 |
7.8 |
12.3*12.3 |
|
AD-AM10-... |
M10 |
A:1-1.7 |
16 |
10.4 |
10.6 |
0.5 |
16.6 |
7.8 |
12.3*12.3 |
|
AD-BM10-... |
M10 |
B:1.8-3.2 |
16 |
11.9 |
10.6 |
0.5 |
16.6 |
7.8 |
12.3*12.3 |
|
AD-CM10-... |
M10 |
C:3.3-4.7 |
16 |
13.4 |
10.6 |
0.5 |
16.6 |
7.8 |
12.3*12.3 |
|
AD-DM10-... |
M10 |
D:1.8-3.2 |
20 |
15.3 |
12.6 |
0.6 |
20.5 |
10.2 |
14*14 |
|
AD-EM10-... |
M10 |
E:3.3-4.7 |
20 |
16.5 |
12.6 |
0.6 |
20.5 |
10.2 |
14*14 |
|
AD-FM10-... |
M10 |
F:4.8-6.2 |
20 |
18 |
12.6 |
0.6 |
20.5 |
10.2 |
14*14 |
|
AD-AM10-... |
M10 |
A;1.8-3.2 |
20 |
15.3 |
12.6 |
0.6 |
20.5 |
10.2 |
14*14 |
|
AD-BM10-... |
M10 |
B:3.3-4.7 |
20 |
16.5 |
12.6 |
0.6 |
20.5 |
10.2 |
14*14 |
|
AD-CM10-... |
M10 |
C:4.8-6.2 |
20 |
18 |
12.6 |
0.6 |
20.5 |
10.2 |
14*14 |
